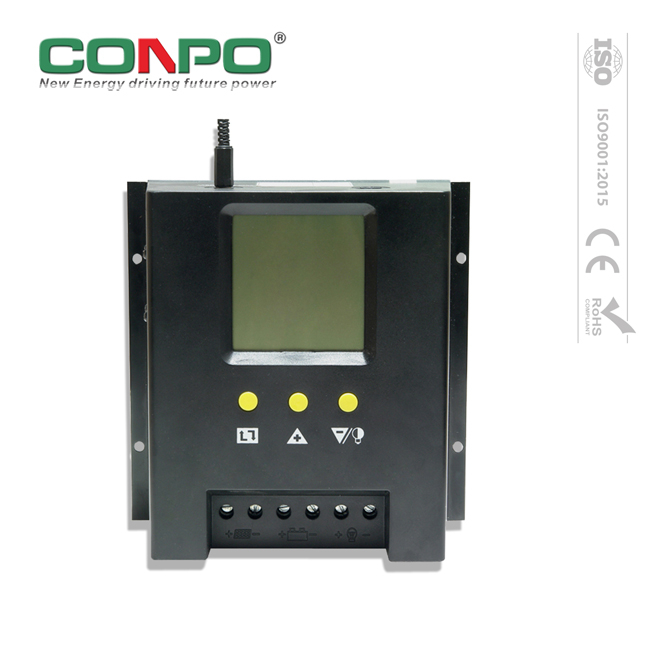

80A, 12V/24V Auto., PWM, LCD CM Solar Charge Controller/Regulator

1). Image of LCD graphic symbol
2). Simple button operation
3). Automatic identification system voltage level
4). Intelligent PWM charge mode
5). Automatic Temperature Compensation
6). Adjustable charge-discharge control parameters
7). Settable operation mode of load
8). Accumulated function of charge and discharge ampere hours
9). Remote monitoring and control function(custom)
10). Battery reverse-discharge protection, overload, short circuit protection, battery reverse-connection protection
11). USB 5V/1A output, charge the electronic devices
Availability:
Quantity:
  • CM8024Z-80A
  • CONPO
  • 8537 1090 90

1. Summary:

CM series solar charge controller is one classical intelligent, multipurpose solar charge and discharge controller. User friendly LCD display shows system status at all times. It's with various control parameters, and can be set to meet various application requirements.

CM-01-01


2. Features:

1). Image of LCD graphic symbol

2). Simple button operation

3). Automatic identification system voltage level

4). Intelligent PWM charge mode

5). Automatic Temperature Compensation

6). Adjustable charge-discharge control parameters

7). Settable operation mode of load

8). Accumulated function of charge and discharge ampere hours

9). Remote monitoring and control function(custom)

10). Battery reverse-discharge protection, overload, short circuit protection, battery reverse-connection protection

11). USB 5V/1A output, charge the electronic devices

CM-CM8024Z,CM8048-05


3. Protection:

1). High voltage disconnection, high voltage recovery

2). Low voltage disconnection, low voltage recovery

3). Overload protection, short circuit protection

4). Solar panel, battery reverse polarity protection

5). Reverse current protection at night

6). Overheat protection and short circuit protection of USB output


4. Technical Data:

Model

CM20D

CM3024Z

CM4024Z

CM5024Z

CM5048

CM6024Z

CM6048

CM8024Z

CM8048

Rated system

voltage

12V/24V auto.

12V/24V auto.

12V/24V auto.

12V/24V auto.

48V

12V/24V auto.

48V

12V/24V auto.

48V

Rated current

15A

20A

30A

40A

50A

50A

60A

60A

80A

80A

Open circuit

voltage

≤50V

≤50V

≤50V

≤50V

≤100V

≤50V

≤100V

≤50V

≤100V

Float charging

voltage

13.8V/27.6V

13.8V/27.6V

13.8V/27.6V

13.8V/27.6V

55.2V

13.8V/27.6V

55.2V

13.8V/27.6V

55.2V

Low voltage

disconnection

10.7V/21.4V

10.7V/21.4V

10.7V/21.4V

10.7V/21.4V

42.8V

10.7V/21.4V

42.8V

10.7V/21.4V

42.8V

Low voltage

reconnection

12.5V/25V

12.5V/25V

12.5V/25V

12.5V/25V

50.0V

12.5V/25V

50.0V

12.5V/25V

50.0V

No load loss

30mA

USB output

5V/1A

N/A

Working

temperature

-10~+60

Temperature

compensator

-4Mv/cell/

Storage

temperature

-30~70

Working

humidity

10%~90%, no condensation

Dimension(mm)

180x95x45

210x105x63

220x155x95

230x210x115

Weight(g)

290

460

800

925

Waterproof

IP30


5. Purchase Option:

Model

Main specifications

Packing information

CM20D-10A

10A, 12V/24V Auto., 1*USB, PWM, LCD display

480x330x265mm/40pcs/11.6kg

CM20D-20A

20A, 12V/24V Auto., 1*USB, PWM, LCD display

480x330x265mm/40pcs/11.6kg

CM3024Z-30A

30A, 12V/24V Auto., 2*USB, PWM, LCD display

425x310x265mm/30pcs/13.8kg

CM4024Z-40A

40A, 12V/24V Auto., 2*USB, PWM, LCD display

425x310x265mm/30pcs/13.8kg

CM5024Z-50A

50A, 12V/24V Auto., PWM, 2*USB, LCD display

435x365x400mm/24pcs/17.8kg

CM5048-50A

50A, 48V, PWM, 2*USB, LCD display

435x365x400mm/24pcs/17.8kg

CM6024Z-60A

60A, 12V/24V Auto., PWM, 2*USB, LCD display

435x365x400mm/24pcs/17.8kg

CM6048-60A

60A, 48V, PWM, 2*USB, LCD display

435x365x400mm/24pcs/17.8kg

CM8024Z-80A

80A, 12V/24V Auto., PWM, LCD display

455x345x280mm/20pcs/18.5kg

CM8048-80A

80A, 48V, PWM, LCD display

455x345x280mm/20pcs/18.5kg

CM-CM8024Z,CM8048-04


CK-02
