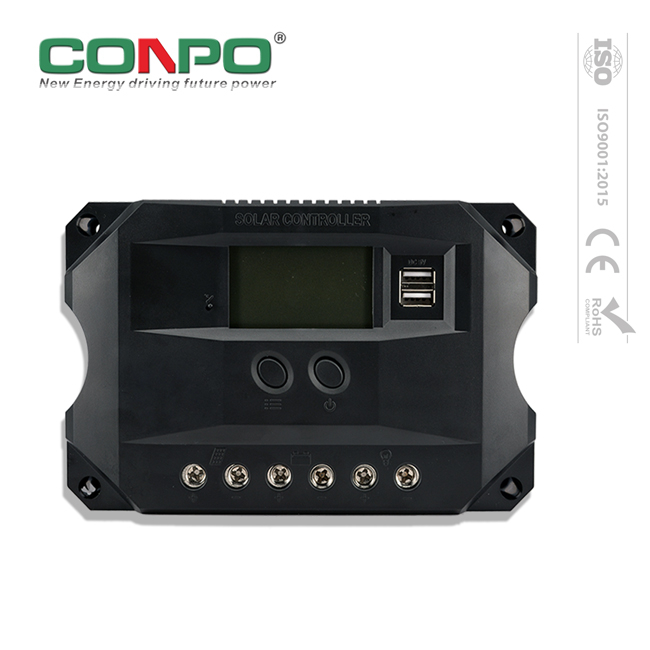

60A,12V/24V Auto,PWM,2*USB,LCD SMC Solar Charge Controller/Regulator

1). Multi-stage PWM charging(Bulk, Float, Absorption)
2). Battery type selection: Sealed, Gel, Flooded and user
3). LCD display
4).Charging-Discharging parameters can be set and modified
5). Various control mode for load(Light control, time & light control, normal mode)
6).Battery LVD, reverse-discharge at night, reverse connection, over-current protection
7). Automatic detection of voltage
8). Temperature compensation
9). USB 5V/1A output, charge the electronic devices
Availability:
Quantity:
  • SMC60D-60A
  • CONPO
  • 8537 1090 90

1. Summary:

The industry design of SMC series solar charge controller makes this series controllers different from traditional controllers, makes it have more advantage than traditional controllers in mass production. Combine with the revolutionary design of dispassion plate, this series controllers structure become more compact, at the same time without lose any function of traditional controllers.

CF1-01


2. Features:

1). Multi-stage PWM charging(Bulk, Float, Absorption)

2). Battery type selection: Sealed, Gel, Flooded and user

3). LCD display

4).Charging-Discharging parameters can be set and modified

5). Various control mode for load(Light control, time & light control, normal mode)

6).Battery LVD, reverse-discharge at night, reverse connection, over-current protection

7). Automatic detection of voltage

8). Temperature compensation

9). USB 5V/1A output, charge the electronic devices

CF1-03


3. Protection:

1). High voltage disconnection, high voltage recovery

2). Low voltage disconnection, low voltage recovery

3). Overload protection, short circuit protection

4). Solar panel, battery reverse polarity protection

5). Reverse current protection at night

6). Overheat protection and short circuit protection of USB output


4. Technical Data:

Model

SMC10D

SMC20D

SMC30D

SMC50D

SMC60D

PV voltage

≤50V

Rated charge current

10A

20A

30A

50A

60A

Rated system voltage

12V/24V Auto.

Rated discharge current

10A

20A

30A

50A

60A

Charge mode

PWM multi-stage(bulk, absorption, float)

Float charge voltage

13.8V(13V~15V)x1/x2

Absorption voltage

14.4V(13V~15V)x1/x2,(lasting:2hrs)

LVD voltage

10.7V(10V~14V)x1/x2

LVR voltage

12.6V(10V~14V)x1/x2

HVD voltage

16.0Vx1/x2

HVR voltage

15.5Vx1/x2

Working mode for load

Light control, time & light control, normal model

Light control voltage

5V(1V~10V) x1/x2

Charge circuit voltage drop

<0.30V

<0.30V

Discharge circuit voltage drop

<0.18V

<0.20V

No load loss

12mA(12V), 14mA(24V),

13mA

USB output

5V/1A

Battery type

GEL, SLD, FLD, USR(default)

Installing cable size

6mm²

10mm²

16mm²

25mm²

Working temperature

-20~-50

Dimension(mm)

130x75x38

140x85x42.5

160x95x45

188x120x51

Weight(g)

175

230

327

627

696


5. Purchase Option:

Model

Main specifications

Packing information

SMC10U-10A

10A, 12V/24V Auto., PWM, 2*USB, LED display

540x305x180mm/48pcs/11.08kg

SMC20U-20A

20A, 12V/24V Auto., PWM, 2*USB, LED display

455x325x197mm/36pcs/10.72kg


SMC10D-10A

10A, 12V/24V Auto., PWM, 2*USB, LCD display

540x305x180mm/48pcs/11.08kg

SMC20D-20A

20A, 12V/24V Auto., PWM, 2*USB, LCD display

455x325x197mm/36pcs/10.72kg

SMC30D-30A

30A, 12V/24V Auto., PWM, 2*USB, LCD display

366x317x217mm/24pcs/10.36kg

SMC50D-50A

50A, 12V/24V Auto., PWM, 2*USB, LCD display

420x380x268mm/24pcs/18.16kg

SMC60D-60A

60A, 12V/24V Auto., PWM, 2*USB, LCD display

420x380x268mm/24pcs/16.70kg
