MPPT-EM2460-150
CONPO
8537 1090 90
1. Summary:

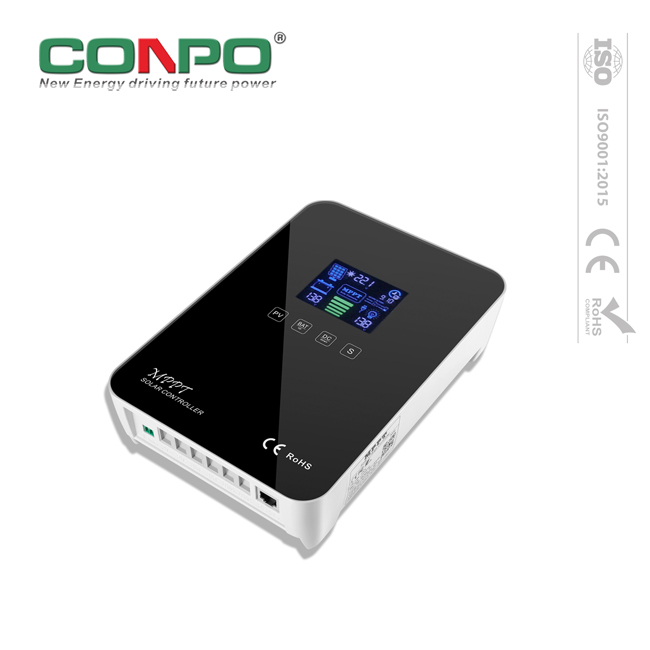

EXPLORER-M Series Self-cooling MPPT Solar Charge Controller is a new generation of MPPT solar intelligent digital controller with the following,
1). Self-heating, protection grade IP43
2). Beautiful design, touch buttons, internal and external repair
3). Four-stage charging to extend battery life
4). Tracking efficiency as high as 99.8%
5). Perfect protection function
6). Can expand APP, host computer, and unlimited parallel
7). can monitor the entire system status, determine system matching etc.
Note:
System voltage: DC12V/24V automatic identification
Rated current: 20A, 30A, 40A, 50A, 60A
Maximum PV (voc) voltage: 100V
2. Features:
1). Efficient MPPT algorithm, MPPT efficiency ≥99.5%
2). Integrated design, stable performance and high reliability
3). With current limiting charging function
4). IP43 level protection, natural cooling
5). Touch button, high-definition color display
6). Intelligent interactive experience
7). Dual RS485 communication interface, support for parallel communication
8). Battery type selection: sealed lead acid battery / flooded battery / gel battery, other battery types (such as lithium battery) can be customized
9). Four LOAD control modes: normally open / normally off mode, light control mode, dual time controller mode, light control + fixed time control mode
10). Support PC-PC software / Wi-Fi module cloud APP monitoring
3. Protection:
1). Input & output over-volt/low-voltage protection,
2). Reverse polarity protection,
3).Over-heating protection,
4). Battery shedding protection etc.
4. Technical Data:
Model | MPPT-EM2420 | MPPT-EM2430 | MPPT-EM2440 | MPPT-EM2450 | MPPT-EM2460 | ||||
Product category | Rated charging current | 20A | 30A | 40A | 50A | 60A | |||
Rated system voltage | DC12V/24V automatic identification | ||||||||
MPPT efficiency | ≥99.5% | ||||||||
Standby consumption | 0.5W~1.2W | ||||||||
Heat-dissipating method | Natural-cooling | ||||||||
Battery system voltage range | 12V system | 9VDC-15VDC(Lead acid) | |||||||
24V system | 18VDC-30VDC(Lead acid) | ||||||||
Li-ion | 8VDC-30VDC(Default), ≤30VDC(Optional activation function) | ||||||||
Input characteristics | Max. PV input voltage(Voc) | 100VDC(Default), DC150V(Optional) | |||||||
Min. Vmpp voltage | Battery voltage +2V | ||||||||
Start-up charging voltage | Battery voltage +3V | ||||||||
Low input voltage protection | Battery voltage +2V | ||||||||
Over voltage protection/Recovery | 100VDC/95VDC(Default), 150VDC/145VDC(Optional) | ||||||||
Rated PV Power | 12V system | 260W | 390W | 520W | 650W | 780W | |||
24V system | 520W | 780W | 1040W | 1300W | 1560W | ||||
Li-ion | 252W-504W | 378W-756W | 504-1008W | 630W-1260W | 756W-1512W | ||||
Charge characteristics | Activation for lithium battery | Optional | |||||||
Battery types (Default Gel battery) | Sealed(SEL), Gel(GEL), Flooded(FLD), User-defined(USE), Li-ion(Lit) | ||||||||
Rated charge current | 20A | 30A | 40A | 50A | 60A | ||||
Temperature compensation | -3Mv/℃/2V(default) | ||||||||
Charge method | 3-stages: CC(Constant current). CV(Constant voltage). CF(Floating charge) | ||||||||
Output voltage stability accuracy | ≤±0.2V | ||||||||
Load characteristics | Load voltage | Same as battery voltage | |||||||
Rated load current | 20A | 30A | |||||||
Load control mode | On/Off mode, PV voltage control mode, Dual-time control mode, PV+ Time control mode | ||||||||
Low voltage protection | 10.5V(default), 11V(restored), settable | ||||||||
Setting method | PC software/APP/Controller | ||||||||
Display & communication | Display | High-definition LCD segment code backlight display | |||||||
Communication | Dual RJ45 port/RS485 protocol/PC(via RS485-USB cable) & APP(via Wi-Fi module)/Centralized monitoring (via parallel connection and RS485-USB cable) | ||||||||
Other parameters | Protection | Input & output over-volt/low-voltage protection, reverse polarity protection, over-heating protection, battery shedding protection etc. | |||||||
Operating ambient temperature | -20℃~+50℃ | ||||||||
Storage temperature | -40℃~+75℃ | ||||||||
IP(ingress protection) | IP43 | ||||||||
Noise | ≤10dB | ||||||||
Altitude | 0~3000m | ||||||||
Max. wiring size | 28mm² | ||||||||
Recommended breaker | ≥40A | ≥63A | ≥63A | ≥100A | ≥100A | ||||
N. weight(kg)/ G. weight(kg) | 1.65/1.98 | 2.35/2.78 | |||||||
Product size/ Packing size(mm) | 220x148x58.5/289x212x105 | 245x170x63.5/334x255x123 |
5. Purchase Option:
Model | Main specifications | Packing information |
MPPT-EM2420 | 20A, 12V/24V Auto., new MPPT Max. PV input voltage: 100V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 450x310x450mm/6pcs/12kg |
MPPT-EM2430 | 30A, 12V/24V Auto., new MPPT Max. PV input voltage: 100V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
MPPT-EM2440 | 40A, 12V/24V Auto., new MPPT Max. PV input voltage: 100V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
MPPT-EM2440-150 | 40A, 12V/24V Auto., new MPPT Max. PV input voltage: 150V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
MPPT-EM2450 | 50A, 12V/24V Auto., new MPPT Max. PV input voltage: 100V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
MPPT-EM2450-150 | 50A, 12V/24V Auto., new MPPT Max. PV input voltage: 150V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
MPPT-EM2460 | 60A, 12V/24V Auto., new MPPT Max. PV input voltage: 100V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
MPPT-EM2460-150 | 60A, 12V/24V Auto., new MPPT Max. PV input voltage: 150V High-definition LCD segment code backlight display IP43 level protection, natural cooling Dual RS485 communication port Support PC and APP(Android & IOS) monitorin4 | 540x360x400mm/4pcs/12kg |
Wi-Fi module | Optional | Please specify it, when ordering! |
485 turn to USB cable | Optional | Please specify it, when ordering! |
