1. Summary:

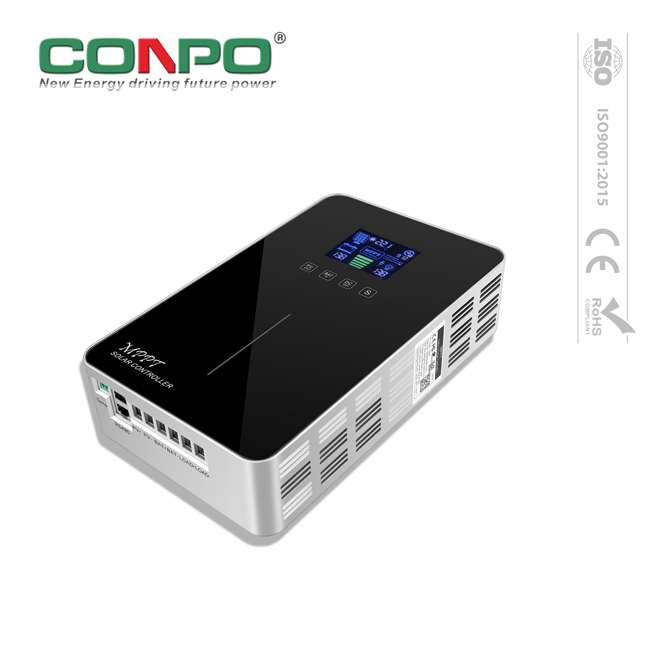

RUNNER series smart MPPT Solar Charge Controller is a new generation of MPPT solar intelligent digital controller with the following,
1). High-end design, color screen, touch button
2). Four-stage charging to extend battery life
3). Tracking efficiency up to 99.8%
4). Perfect protection function
5). Expandable APP, host computer, and unlimited parallel connection
6). Monitor the entire system status, diagnose system matching, etc.
Note:
System voltage: DC12V/24V/36V/48V automatic identification
Rated current: 50A, 60A
Maximum PV (voc) voltage: 150V
2. Features:
1). High-efficient MPPT algorithm, MPPT efficiency ≥99.5%.
2). Support Seal/Gel/Flooded battery and customized batteries.
3). Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV+Time control.
4). Current-limited charging function.
5). High definition LCD display.
6). Intelligent interaction experience.
7).Dual RS485 communication ports, support for parallel communication.
8).Support PC and APP (Android & iOS) monitoring.
3. Protection:
1). Input & output over-volt/low-voltage protection,
2). Reverse polarity protection,
3).Over-heating protection,
4). Battery shedding protection etc.
4. Technical Data:
RUNNER Series | MPPT-R50A | MPPT-R60A | ||
Product | Controller properties | MPPT (Maximum power point tracking) | ||
MPPT efficiency | ≥99.5% | |||
Standby power | 0.5W~1.2W | |||
System voltage | 12V/24V/36V/48V auto work | |||
Heat-Dissipating method | Fan-cooling | |||
Input | Max.PV input voltage(Voc) | DC150V | ||
Start charge voltage point | Battery voltage + 3V | |||
Low input voltage protection point | Battery voltage + 2V | |||
PV rated power | 12V system | 650W | 780W | |
24V system | 1300W | 1560W | ||
36V system | 1950W | 2340W | ||
48V system | 2600W | 3120W | ||
Charge | Battery types (Default Gel battery) | Gel battery, Sealed lead-acid battery, Flooded battery, User-defined | ||
Charge rated current | 50A | 60A | ||
Charge method | 3 stages: CC (Constant current) - CV (Constant voltage) - CF (Floating charge) | |||
LOAD | Load voltage | Same as battery voltage | ||
Load rated current | 30A | |||
Load control mode | On, Off , PV voltage control, Dual-time control, PV + Time control | |||
Low voltage protection | The default protection point is 10.5V, and it is restored to 11V (can be set) | |||
Setup method | PC software / Mobile APP / controller display | |||
Display & | Display | High-definition LCD segment code backlight display | ||
Dry contact access voltage | 5V ~ 12V | |||
Communication | Dual RJ45 port / RS485 / support PC software monitoring / | |||
Other Parameters | Protections | Input over / low voltage, output over / low voltage, reverse connection, | ||
Operating ambient temperature | -20℃~+50℃ | |||
Storage temperature | -40℃~+75℃ | |||
IP(Ingress protection) | IP21 | |||
Max. Battery wire (mm2/AWG) | 30mm2 | |||
Max. Load wire (mm2/AWG) | 30mm2 | |||
Recommended breaker | ≥100A | |||
| Net weight/Gross weight (kg) | 2.15/3.05 | |||
Product size/Packing size (mm) | 305×185×72/420×275×150 | |||
5. Purchase Option:
Model | Main specifications | Packing information |
MPPT-R50 | 50A, 12V/24V/36V/48V Auto., new MPPT Max. PV input voltage: 150V High-definition LCD segment code backlight display Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
MPPT-R60 | 60A, 12V/24V/36V/48V Auto., new MPPT Max. PV input voltage: 150V High-definition LCD segment code backlight display Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
Wi-Fi module | Optional | Please specify it, when ordering! |
485 turn to USB cable | Optional | Please specify it, when ordering! |
