1. Summary:

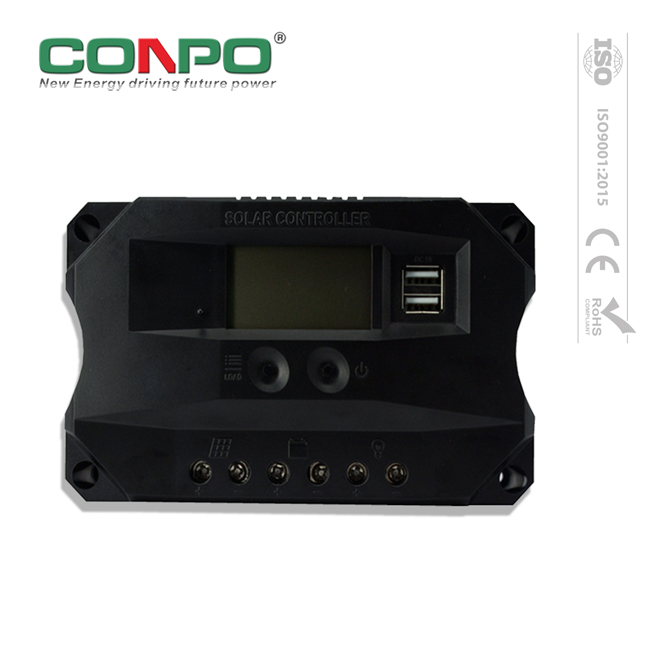

The industry design of SMC series solar charge controller makes this series controllers different from traditional controllers, makes it have more advantage than traditional controllers in mass production. Combine with the revolutionary design of dispassion plate, this series controllers structure become more compact, at the same time without lose any function of traditional controllers.
2. Features:
1). Multi-stage PWM charging(Bulk, Float, Absorption)
2). Battery type selection: Sealed, Gel, Flooded and user
3). LCD display
4).Charging-Discharging parameters can be set and modified
5). Various control mode for load(Light control, time & light control, normal mode)
6).Battery LVD, reverse-discharge at night, reverse connection, over-current protection
7). Automatic detection of voltage
8). Temperature compensation
9). USB 5V/1A output, charge the electronic devices
3. Protection:
1). High voltage disconnection, high voltage recovery
2). Low voltage disconnection, low voltage recovery
3). Overload protection, short circuit protection
4). Solar panel, battery reverse polarity protection
5). Reverse current protection at night
6). Overheat protection and short circuit protection of USB output
4. Technical Data:
Model | SMC10D | SMC20D | SMC30D | SMC50D | SMC60D | |
PV voltage | ≤50V | |||||
Rated charge current | 10A | 20A | 30A | 50A | 60A | |
Rated system voltage | 12V/24V Auto. | |||||
Rated discharge current | 10A | 20A | 30A | 50A | 60A | |
Charge mode | PWM multi-stage(bulk, absorption, float) | |||||
Float charge voltage | 13.8V(13V~15V)x1/x2 | |||||
Absorption voltage | 14.4V(13V~15V)x1/x2,(lasting:2hrs) | |||||
LVD voltage | 10.7V(10V~14V)x1/x2 | |||||
LVR voltage | 12.6V(10V~14V)x1/x2 | |||||
HVD voltage | 16.0Vx1/x2 | |||||
HVR voltage | 15.5Vx1/x2 | |||||
Working mode for load | Light control, time & light control, normal model | |||||
Light control voltage | 5V(1V~10V) x1/x2 | |||||
Charge circuit voltage drop | <0.30V | <0.30V | ||||
Discharge circuit voltage drop | <0.18V | <0.20V | ||||
No load loss | ≤12mA(12V), ≤14mA(24V), | ≤13mA | ||||
USB output | 5V/1A | |||||
Battery type | GEL, SLD, FLD, USR(default) | |||||
Installing cable size | ≤6mm² | ≤10mm² | ≤16mm² | ≤25mm² | ||
Working temperature | -20℃~-50℃ | |||||
Dimension(mm) | 130x75x38 | 140x85x42.5 | 160x95x45 | 188x120x51 | ||
Weight(g) | 175 | 230 | 327 | 627 | 696 |
5. Purchase Option:
Model | Main specifications | Packing information |
SMC10U-10A | 10A, 12V/24V Auto., PWM, 2*USB, LED display | 540x305x180mm/48pcs/11.08kg |
SMC20U-20A | 20A, 12V/24V Auto., PWM, 2*USB, LED display | 455x325x197mm/36pcs/10.72kg |
SMC10D-10A | 10A, 12V/24V Auto., PWM, 2*USB, LCD display | 540x305x180mm/48pcs/11.08kg |
SMC20D-20A | 20A, 12V/24V Auto., PWM, 2*USB, LCD display | 455x325x197mm/36pcs/10.72kg |
SMC30D-30A | 30A, 12V/24V Auto., PWM, 2*USB, LCD display | 366x317x217mm/24pcs/10.36kg |
SMC50D-50A | 50A, 12V/24V Auto., PWM, 2*USB, LCD display | 420x380x268mm/24pcs/18.16kg |
SMC60D-60A | 60A, 12V/24V Auto., PWM, 2*USB, LCD display | 420x380x268mm/24pcs/16.70kg |
