1. Summary:

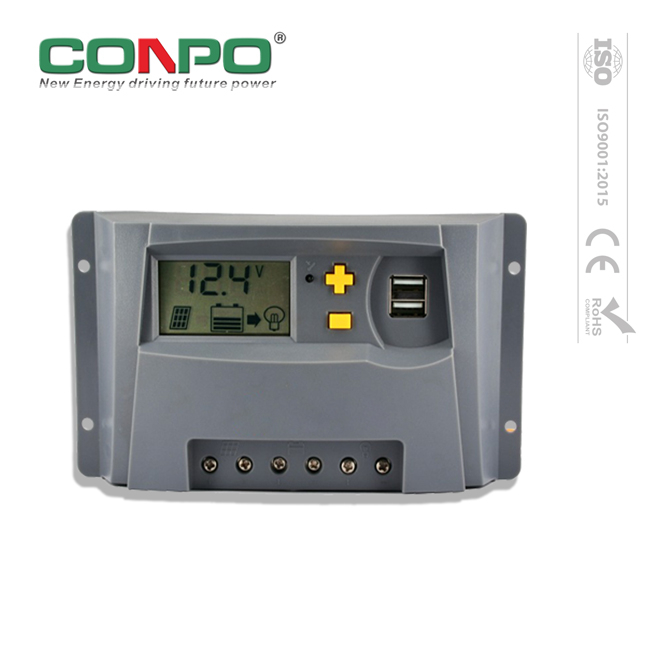

This series is a series of new intelligent multi-function solar charging controller. Its innovative design makes it easy to install, with friendly OS interface people can use this product easier. Optimized charge and discharge management can greatly extend the battery life. Meanwhile, the controller can display all system parameters, you can set every parameter to meet the various applications.
The controller can automatically identify 12/24/36/48V voltage level, the unique clock circuit allows the product to have more accurate load control capabilities, controller comes with remote communication function an be extended to a variety of host computers such as desktop computers, tablet PCs, Smart phones, etc. through cable, WIFI and Bluetooth, etc. to provide data transmission, external temperature sensor makes temperature compensation more accurate.
2. Features:
1). High efficient PWM charging
2). Multistage charging technology(Bulk, Absorption, Float and Equalization)
3). Battery type selection: Sealed, Gel, Flooded and user
4). LCD display
5). Various control mode for load, working parameters can be set and modified
6). Self-timing
7). Automatic detection of voltage 12V/24V/36V/48V
8). Temperature compensation
9). USB 5V/1A output, charge the electronic devices(10A~20A)
10). Remote communication function-RS485 port with industrial standard MODBUS open architechture
3. Protection:
1). High voltage disconnection, high voltage recovery
2). Low voltage disconnection, low voltage recovery
3). Overload protection, short circuit protection
4). Solar panel, battery reverse polarity protection
5). Reverse current protection at night
6). Overheat protection and short circuit protection of USB output
4. Technical Data:
Model | SK10DU | SK20DU | SK30D | SK40D | SK50D | SK60D | SK80D | SK100D |
PV voltage | ≤100V | |||||||
Rated charge current | 10A | 20A | 30A | 40A | 50A | 60A | 80A | 100A |
Rated system voltage | 12V/24V/36V/48V Auto. | |||||||
Rated discharge current | 10A | 20A | 30A | 40A | 50A | 60A | 80A | 100A |
Charge mode | PWM multi-stage(bulk, absorption, float, equalized) | |||||||
Float charge voltage | 13.8V(13V~15V)x1/x2/x3/x4 | |||||||
Absorption voltage | 14.4V(13V~15V)x1/x2/x3/x4,(lasting:2hrs) | |||||||
Equalized voltage | 14.6V(13V~15.5V)x1/x2/x3/x4,(lasting:2hrs) | |||||||
HVD voltage | 16.0Vx1/x2/x3/x4 | |||||||
HVR voltage | 15.5Vx1/x2/x3/x4 | |||||||
LVD voltage | 10.7V(10V~14V)x1/x2/x3/x4 | |||||||
LVR voltage | 12.6V(10V~14V)x1/x2/x3/x4 | |||||||
Working mode for load | Light control, time & light control, normal mode, self-timing switching on/off mode light control with switch on after night and switch off before dawn | |||||||
Light control voltage | 5V(1V~10V) x1/x2/x3/x4 | |||||||
Charge circuit voltage drop | <0.21V | |||||||
Discharge circuit voltage drop | <0.12V | N/A | ||||||
No load loss | ≤14mA | N/A | ||||||
USB output | 5V/1A | N/A | ||||||
Battery type | GEL, SLD, FLD, USR(default) | |||||||
Installing cable size | ≤6mm² | ≤16mm² | ≤25mm² | |||||
Working temperature | -20℃~-55℃ | |||||||
Dimension(mm) | 160x88.2x42.4 | 178x101.4x45.5 | 196x111x54 | 220x133x77.5 | 220x153x77.5 | |||
Weight(g) | 283 | 310 | 412 | 1220 | 1340 |
5. Purchase Option:
Model | Main specifications | Packing information |
SK10DU-10A | 10A, 12V/24V/36V/48V Auto., PWM, 2*USB, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 455x380x215mm/36pcs/16kg |
SK20DU-20A | 20A, 12V/24V/36V/48V Auto., PWM, 2*USB, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 425x335x229mm/24pcs/11.2kg |
SK30D-30A | 30A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 440x370x250mm/24pcs/11.2kg |
SK40D-40A | 40A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 440x370x250mm/24pcs/11.2kg |
SK50D-50A | 50A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 545x425x205mm/24pcs/17kg |
SK60D-60A | 60A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 545x425x205mm/24pcs/20.8kg |
SK80D-80A | 80A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 525x490x190mm/12pcs/17.98kg |
SK100D-100A | 100A, 12V/24V/36V/48V Auto., PWM, LCD display 4-stage charging technology(bulk, absorption, float, equalize) with self-timing and RJ45 communication port Remote communication function(optional) | 525x490x190mm/12pcs/19.54kg |
