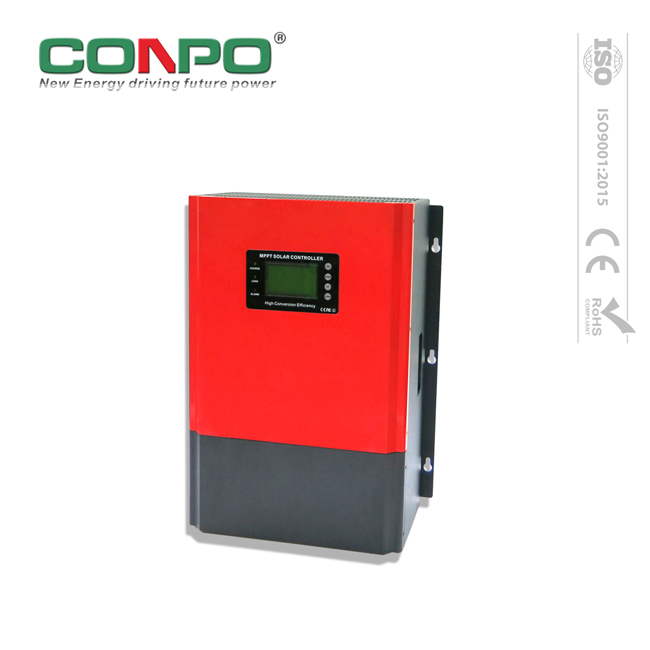

GALAXY-B96-100A
CONPO
8537 1090 90
1. Summary:
GALAXY series is a high-power maximum power point intelligent tracking (MPPT) solar charging controller with PV wide voltage range input, adjustable charging voltage, RS485/LAN communication, modular design, small size, light weight and high conversion. The advantages of efficiency, etc., are the highest-end high-power MPPT solar charging controller currently applied to off-grid systems;
Note:
System voltage: DC96V or 192V or 216V or 240V or 384V
Rated current: 50A, 60A, 80A, 100A
Maximum PV (voc) voltage: DC430V or 660V or 850V
2. Features:
1). It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%,and converter efficiency up to 98%.
2). Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
3). Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV +Time control .
4). Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings can be selected by the user, and the user can also customize the parameters for other battery charging.
5). It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
6). Support multi - machine parallel to realize system power upgrade.
7). High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
8). RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.
9). Support PC software monitoring and Wi-Fi module to realize APP cloud monitoring.
3. Protection:
1). Input & output over-volt/low-voltage protection,
2). Reverse polarity protection,
3).Over-heating protection,
4). Battery shedding protection etc.
4. Technical Data:
Galaxy | Series | Galaxy-B96 | Galaxy-B192\Galaxy-B216(220)\Galaxy-B240 | Galaxy-B384 | ||||||
Power model | 80A | 100A | 50A | 60A | 80A | 100A | 70A | 80A | ||
Product category | Controller Properties | MPPT (maximum power point tracking) | ||||||||
MPPT efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ||
System voltage | DC96V | DC192V\DC216V(DC220V)\DC240V | DC384V | |||||||
Range | DC72V~DC128V | DC144V~DC256V\DC162V~DC288V\DC180V~DC320V | DC288V~DC512V | |||||||
Heat-dissipating method | Intelligent fan cooling | |||||||||
Input Characteristics | PV Max. | DC430V | DC430V | DC430V | DC660V | DC660V | DC850V | |||
PV Start charge | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | ||
PV Low protection | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | ||
PV Over protection | DC430V | DC430V | DC430V | DC430V | DC660V | DC660V | DC850V | DC850V | ||
Rated PV power | 8320W | 10400 | 10400W\ 11700W\ 13000W | 12480W\ 14040W\ 15600W | 16640W\ 18720W\ 20800W | 20800W\ 23400W\ 26000W | 29120W | 33280W | ||
Charge Characteristics | Selectable Battery Types | Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined)-- Default Gel battery | ||||||||
Charge rated current | 80A | 100A | 50A | 60A | 80A | 100A | 70A | 80A | ||
Charge Method | 3-Stage: constant current(fast charging)-constant voltage-floating charge | |||||||||
LOAD Characteristics | Load voltage | The same as the battery voltage | The same as the battery voltage | - | - | - | - | |||
Load rated current | 80A | 100A | 50A | 60A | - | - | - | - | ||
Load control mode | On\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode | - | - | - | - | |||||
Display & Communication | Display mode | LCD128*64 dots/ backlight display | ||||||||
Communication mode | 8-pin RJ45 port/RS485/support PC software monitoring/support WiFi module to realize APP cloud monitoring | |||||||||
Other Parameters | Protect function | Input-output over \ under voltage protection, Prevention of connection reverse protection etc. | ||||||||
Operation Temperature | -20℃~+50℃ | |||||||||
Storage Temperature | -40℃~+75℃ | |||||||||
IP(Ingress protection) | IP21 | |||||||||
Net Weight (kg) | 14.7kg | 14.7kg | 18.8kg | 18.8kg | ||||||
Gross Weight(kg) | 16.6kg | 16.6kg | 20.6kg | 20.6kg | ||||||
Product Size(mm) | 371*500*187 | 371*500*187 | 391*500*227 | 391*500*227 | ||||||
Packing Size(mm) | 590*420*270 | 590*420*270 | 590*440*320 | 590*440*320 |
5. Purchase Option
Model | Main specifications | Packing information |
GALAXY-B96-80A | 80A, 96V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B96-100A | 100A, 96V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B192-50A | 50A, 192V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B192-60A | 60A, 192V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B192-80A | 80A, 192V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B192-100A | 100A, 192V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B216-50A | 50A, 216V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B216-60A | 60A, 216V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B216-80A | 80A, 216V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B216-100A | 100A, 216V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B240-50A | 50A, 240V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B240-60A | 60A, 240V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B240-80A | 80A, 240V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B240-100A | 100A, 240V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B384-70A | 70A, 384V, MPPT Max. PV input voltage: 850V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B384-80A | 80A, 384V, MPPT Max. PV input voltage: 850V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
Wi-Fi module |
| Please specify it, when ordering! |
485 turn to USB cable |
| Please specify it, when ordering! |
1. Summary:
GALAXY series is a high-power maximum power point intelligent tracking (MPPT) solar charging controller with PV wide voltage range input, adjustable charging voltage, RS485/LAN communication, modular design, small size, light weight and high conversion. The advantages of efficiency, etc., are the highest-end high-power MPPT solar charging controller currently applied to off-grid systems;
Note:
System voltage: DC96V or 192V or 216V or 240V or 384V
Rated current: 50A, 60A, 80A, 100A
Maximum PV (voc) voltage: DC430V or 660V or 850V
2. Features:
1). It has an efficient MPPT algorithm, MPPT efficiency ≥99.5%,and converter efficiency up to 98%.
2). Charge mode: three stages (constant current, constant voltage, floating charge), it prolongs service life of the batteries.
3). Four types of load mode selection: ON/OFF, PV voltage control, Dual Time control, PV +Time control .
4). Three kinds of commonly used lead-acid battery (Seal\Gel\Flooded) parameter settings can be selected by the user, and the user can also customize the parameters for other battery charging.
5). It has a current limiting charging function. When the power of PV is too large, the controller automatically keeps the charging power, and the charging current will not exceed the rated value.
6). Support multi - machine parallel to realize system power upgrade.
7). High definition LCD display function to check the device running data and working status, also can support modify the controller display parameter.
8). RS485 communication, we can offer communication protocol to convenient user’s integrated management and secondary development.
9). Support PC software monitoring and Wi-Fi module to realize APP cloud monitoring.
3. Protection:
1). Input & output over-volt/low-voltage protection,
2). Reverse polarity protection,
3).Over-heating protection,
4). Battery shedding protection etc.
4. Technical Data:
Galaxy | Series | Galaxy-B96 | Galaxy-B192\Galaxy-B216(220)\Galaxy-B240 | Galaxy-B384 | ||||||
Power model | 80A | 100A | 50A | 60A | 80A | 100A | 70A | 80A | ||
Product category | Controller Properties | MPPT (maximum power point tracking) | ||||||||
MPPT efficiency | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ≥98% | ||
System voltage | DC96V | DC192V\DC216V(DC220V)\DC240V | DC384V | |||||||
Range | DC72V~DC128V | DC144V~DC256V\DC162V~DC288V\DC180V~DC320V | DC288V~DC512V | |||||||
Heat-dissipating method | Intelligent fan cooling | |||||||||
Input Characteristics | PV Max. | DC430V | DC430V | DC430V | DC660V | DC660V | DC850V | |||
PV Start charge | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | Vbat+20V | ||
PV Low protection | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | Vbat+10V | ||
PV Over protection | DC430V | DC430V | DC430V | DC430V | DC660V | DC660V | DC850V | DC850V | ||
Rated PV power | 8320W | 10400 | 10400W\ 11700W\ 13000W | 12480W\ 14040W\ 15600W | 16640W\ 18720W\ 20800W | 20800W\ 23400W\ 26000W | 29120W | 33280W | ||
Charge Characteristics | Selectable Battery Types | Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined)-- Default Gel battery | ||||||||
Charge rated current | 80A | 100A | 50A | 60A | 80A | 100A | 70A | 80A | ||
Charge Method | 3-Stage: constant current(fast charging)-constant voltage-floating charge | |||||||||
LOAD Characteristics | Load voltage | The same as the battery voltage | The same as the battery voltage | - | - | - | - | |||
Load rated current | 80A | 100A | 50A | 60A | - | - | - | - | ||
Load control mode | On\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode | - | - | - | - | |||||
Display & Communication | Display mode | LCD128*64 dots/ backlight display | ||||||||
Communication mode | 8-pin RJ45 port/RS485/support PC software monitoring/support WiFi module to realize APP cloud monitoring | |||||||||
Other Parameters | Protect function | Input-output over \ under voltage protection, Prevention of connection reverse protection etc. | ||||||||
Operation Temperature | -20℃~+50℃ | |||||||||
Storage Temperature | -40℃~+75℃ | |||||||||
IP(Ingress protection) | IP21 | |||||||||
Net Weight (kg) | 14.7kg | 14.7kg | 18.8kg | 18.8kg | ||||||
Gross Weight(kg) | 16.6kg | 16.6kg | 20.6kg | 20.6kg | ||||||
Product Size(mm) | 371*500*187 | 371*500*187 | 391*500*227 | 391*500*227 | ||||||
Packing Size(mm) | 590*420*270 | 590*420*270 | 590*440*320 | 590*440*320 |
5. Purchase Option
Model | Main specifications | Packing information |
GALAXY-B96-80A | 80A, 96V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B96-100A | 100A, 96V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B192-50A | 50A, 192V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B192-60A | 60A, 192V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B192-80A | 80A, 192V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B192-100A | 100A, 192V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B216-50A | 50A, 216V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B216-60A | 60A, 216V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B216-80A | 80A, 216V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B216-100A | 100A, 216V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B240-50A | 50A, 240V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x420x270mm/1pc/16.6kg |
GALAXY-B240-60A | 60A, 240V, MPPT Max. PV input voltage: 430V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B240-80A | 80A, 240V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B240-100A | 100A, 240V, MPPT Max. PV input voltage: 660V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
GALAXY-B384-70A | 70A, 384V, MPPT Max. PV input voltage: 850V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 590x440x320mm/1pc/20.6kg |
GALAXY-B384-80A | 80A, 384V, MPPT Max. PV input voltage: 850V Support multi-machine parallel Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
Wi-Fi module |
| Please specify it, when ordering! |
485 turn to USB cable |
| Please specify it, when ordering! |
