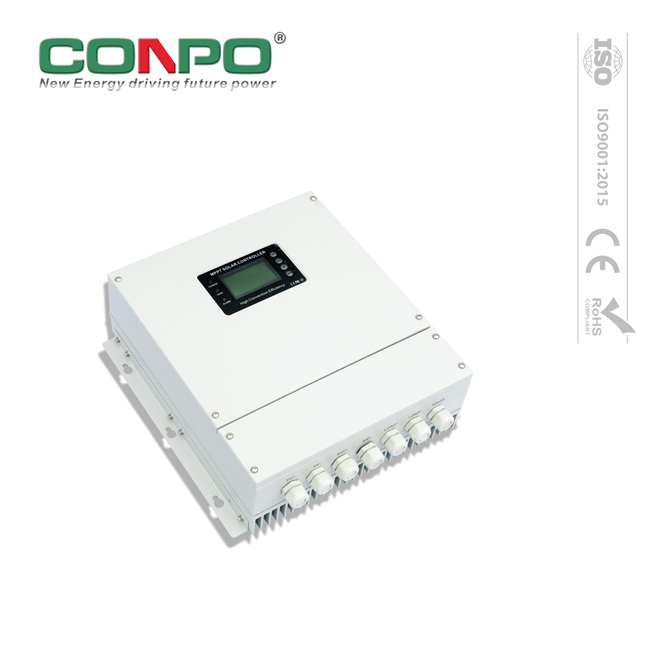

MARS series outdoor IP67 protection level of MPPT Solar Controller
System voltage: DC12V/24V/36V/48V automatic identification or 96V
Rated current: 80A, 100A(DC12V/24V/36V/48V auto.), 50A(DC96V)
Maximum PV (voc) voltage: DC150V(80A, 100A), 300V(50A)
Support Multi- machine Parallel to Realize System Power Upgrade
Dual RS485 communication port
Support PC and APP(Android & IOS) monitoring
1. Summary:
The series has high conversion efficiency, efficient MPPT algorithm, neat internal structure and beautiful appearance design. With the continuous optimization of the products, the series has its unique advantages:
1). The various sampling data show on the screen, convenient user access.
2). The wide input voltage range of PV, suitable for a variety of commonly used specifications of solar panels.
3). The professional adaptation of high voltage battery system, providing solutions for special applications.
4). The extension of the functions of WIFI, wireless communication and remote cloud monitoring.
5). Expand the function of parallel machine to meet the combination application of multiple products.
6). The machine function meet the multiple product combination application. Continuous optimization design, super high cost performance.
2. Features:
1). Efficient MPPT controller, MPPT efficiency is not less than 99.5%, the conversion efficiency of the whole machine is up to 98%.
2). Third-order charging (constant current, constant voltage, floating charge) can effectively extend the life of the battery.
3). LOAD mode has open/normally off mode, light control mode, dual time control mode, light control - fixed time control mode.
4). Battery system voltage is automatically recognized.
5). Customers can choose to charge 3 types of commonly used batteries (sealed lead-acid batteries, colloidal lead-acid batteries, open lead-acid batteries), and can customize the parameters to charge other types of batteries.
6). With current limiting charging function, when the user's battery board power is too large, the controller automatically maintains the charging power, and the charging current will not exceed the rated value.
7). Support multi-machine parallel connection to achieve system power upgrade.
8). With high-definition LCD display function, you can view the running data and working status of the device, and at the same time support the modification of the display parameters of the controller.
9). RS485 can provide communication protocol, convenient for customers to integrate management and secondary development.
10). Support PC software monitoring, support Wi-Fi module expansion to achieve app cloud monitoring.
11). IP67 protection level, can adapt to a variety of complex work environments.
3. Technical Data:
Mars series | Mars-48BL-80A | Mars-48BL-100A | Mars-96BH-50A | ||
Product category | Controller properties | MPPT (maximum power point tracking) | |||
MPPT efficiency | ≥99.5% | ||||
Standby power | 0.5W~1.2W | ||||
System voltage | Automatic recognition | 96V | |||
Heat-dissipating method | Air cooling | ||||
Input Characteristics | Max. PV input voltage(VOC) | DC150V | DC300V | ||
Start the charge voltage point | Battery voltage + 3V | Battery voltage + 10V | |||
Low input voltage protection point | Battery voltage + 2V | Battery voltage + 5V | |||
Over voltage protection point | DC150V | DC300V | |||
Rated PV power | 12V system | 1040W | 1300W | － | |
24V system | 2080W | 2600W | － | ||
36V system | 3120W | 3900W | － | ||
48V system | 4160W | 5200W | － | ||
96V system | － | － | 5200W | ||
Charge Characteristics | Selectable battery types (Default gel battery) | Sealed lead acid, Gel battery, Flooded (Other types of the batteries also can be defined) | |||
Charge rated current | 80A | 100A | 50A | ||
Charge method | 3-Stage: constant current(fast charging)-constant voltage-floating charge | ||||
LOAD Characteristics | Load voltage | The same as the battery voltage | |||
Load rated current | 80A | 100A | 50A | ||
Load control mode | On\Off mode, PV voltage control mode, Dual-time control mode, PV + Time control mode | ||||
Display & Communication | Display mode | High-definition LCD segment code backlight display | |||
Communication mode | 8-pin RJ45 port/RS485/support PC software monitoring/ support Wi-Fi module to realize APP cloud monitoring | ||||
Other Parameters | Protect function | Input-output over \ under voltage protection, Prevention of connection reverse protection, battery shedding protection etc. | |||
Operation temperature | -20℃~+50℃ | ||||
Storage temperature | -40℃~+75℃ | ||||
IP(Ingress protection) | IP67 | ||||
Max. connection size | 50mm2 | ||||
Net weight(kg) | 12.8 | ||||
Gross weight(kg) | 13 | ||||
Product size(mm) | 500*350*140 | ||||
Packing size(mm) | 610*448*265 | ||||
4. Purchase Option
Model | Main specifications | Packing information |
Mars-48BL-80A | 80A, 12V/24V/36V/48V auto., MPPT Max. PV input voltage: 150V Outdoor IP67 protection level Support multi-machine Parallel to realize system power upgrade Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | 610x448x265mm/1pc/13kg |
Mars-48BL-100A | 100A, 12V/24V/36V/48V auto., MPPT Max. PV input voltage: 150V Outdoor IP67 protection level Support multi-machine Parallel to realize system power upgrade Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
Mars-96BH-50A | 50A, 96V, MPPT Max. PV input voltage: 300V Outdoor IP67 protection level Support multi-machine Parallel to realize system power upgrade Dual RS485 communication port Support PC and APP(Android & IOS) monitoring | |
Wi-Fi module |
| Please specify it, when ordering! |
485 turn to USB cable |
| Please specify it, when ordering! |
